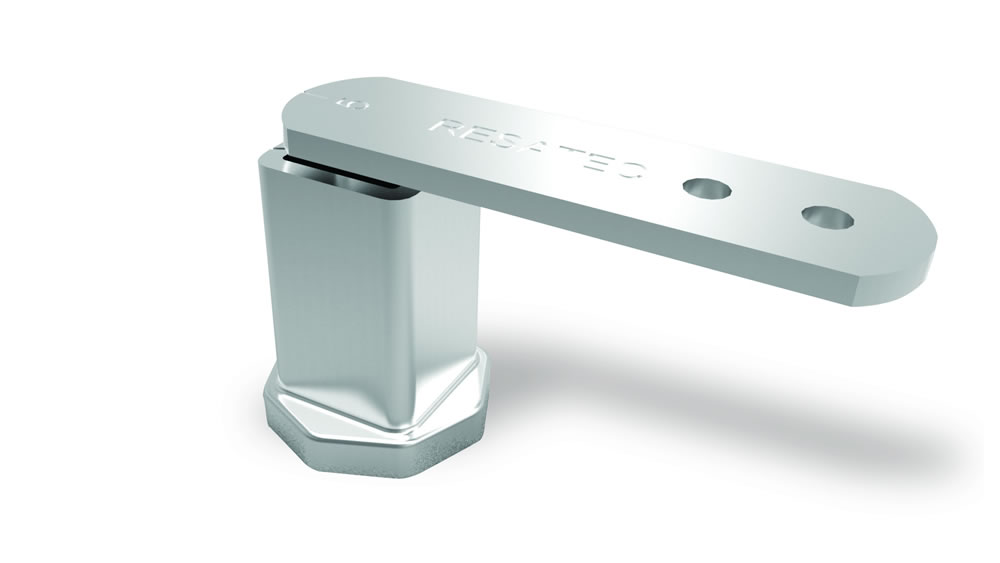

Universal Tensioner TE-I
TEI5 Stainless Steel Tensioner Arm
Variation Not Available
CRTEI5
In Stock
£
175.09
Inc VAT
£
145.91
Ex VAT
TEI5 Stainless Steel Tensioner Arm | CRTEI5
Add to List
Remove from List
Add to Cart
SPECIFICATION
FURTHER INFO
RESATEC® stainless steel universal tensioners type TE-i are used throughout mechanical engineering and allied industries where corrosion is a problem.
Mainly used as belt and chain tensioners, they are simply fitted by a single rear mounted bolt and hold in any position by friction. A base flange cutout allows them to be accurately aligned using a simple spigot.
TE-i tensioners are safe in operation and maintenance- free.
| Type | A1 | A2 | B | C | ØD | E | F | G | H | I | K | M | F in N A1 | F in N A3 | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TE-i 2 | 80 | 60 | 52 | 20 | 8.5 | 38 | 8.0 | 16 | 90 | 5 | 7 | M6 | 0-90 | 0-110 | 0.210 |
| TE-i 3 | 100 | 80 | 63 | 25 | 10.5 | 48 | 8.5 | 21 | 112.5 | 5 | 10 | M8 | 0-140 | 0-170 | 0.380 |
| TE-i 4 | 100 | 80 | 78 | 30 | 10.5 | 59 | 8.5 | 25 | 115 | 6 | 12 | M10 | 0-320 | 0-430 | 0.620 |
| TE-i 5 | 130 | 100 | 108 | 50 | 12.5 | 76 | 10.5 | 32 | 155 | 8 | 15 | M12 | 0-820 | 0-1050 | 1.700 |
| TE-i 6* | 175 | 140 | 140 | 60 | 20.5 | 97 | 12.5 | 41 | 205 | 10 | 17 | M16 | 0-1500 | 0-1880 | 3.420 |
