NT Twin Column Chain Tensioning

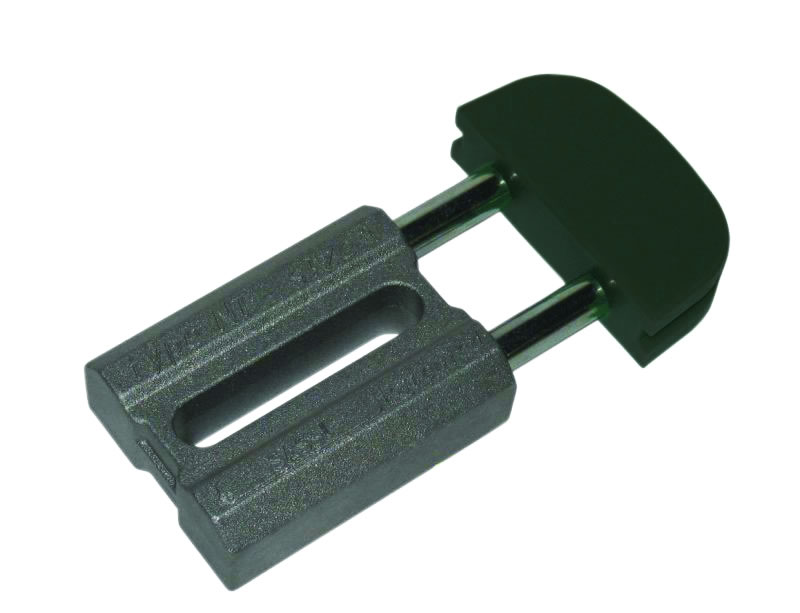

NT1-08B-1 Linear Chain Tensioner
Variation Not Available
CTC1-08B1
In Stock
£
67.61
Inc VAT
£
56.34
Ex VAT
NT1-08B-1 Linear Chain Tensioner | CTC1-08B1
Add to List
Remove from List
Add to Cart
SPECIFICATION
FURTHER INFO
CTC Twin Column Chain Tensioners
CTC Twin Column Chain Tensioners are mechanical devices to maintain the correct tension in a chain drive and thus increase its life. In automatically compensating for chain stretch the CTC Automatic Chain Tensioner also considerably reduces drive vibration and noise. The CTC Automatic Chain tensioner is truly ‘fit & forget’ enabling high drive reliability and very low maintenance costs. The tensioning head increases the contact surface area, whilst the low drag, low wear profile is made of Ultra High Molecular Weight Polyethylene. Dry self-lubricating bushings are in standard PTFE.
| Type | Load max. N | Chain pitch | A | B | B1 | C | D | E min | E max | F | G | H | I | L | M | R | Weight Kg. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CTC1-06B1 | 280 | 3/8″ x 7/32″ | 50 | 23 | 20 | 61 | 74 | 114 | 138 | 6.5 | 10.5 | 68 | 20 | 12.5 | 22 | 42 | 0.24 |
| CTC1-08B1 | 280 | 1/2″ x 5/16″ | 50 | 23 | 20 | 61 | 74 | 114 | 138 | 6.5 | 10.5 | 68 | 20 | 12.5 | 22 | 42 | 0.24 |
| CTC1-10B1 | 280 | 5/8″ x 3/8″ | 50 | 23 | 20 | 61 | 74 | 114 | 138 | 6.5 | 10.5 | 68 | 20 | 12.5 | 22 | 42 | 0.24 |
| CTC2-10B1 | 460 | 5/8″ x 3/8″ | 67 | 28 | 20 | 73 | 87 | 138 | 170 | 7 | 12.5 | 88 | 25 | 15 | 25.5 | 54 | 0.44 |
| CTC2-12B1 | 460 | 3/4″ x 7/16″ | 67 | 28 | 20 | 73 | 87 | 138 | 170 | 7 | 12.5 | 88 | 25 | 15 | 25.5 | 54 | 0.45 |
| CTC2-16B1 | 460 | 1″ x 17mm | 67 | 28 | 25 | 73 | 87 | 138 | 170 | 7 | 12.5 | 88 | 25 | 15 | 25.5 | 54 | 0.46 |
