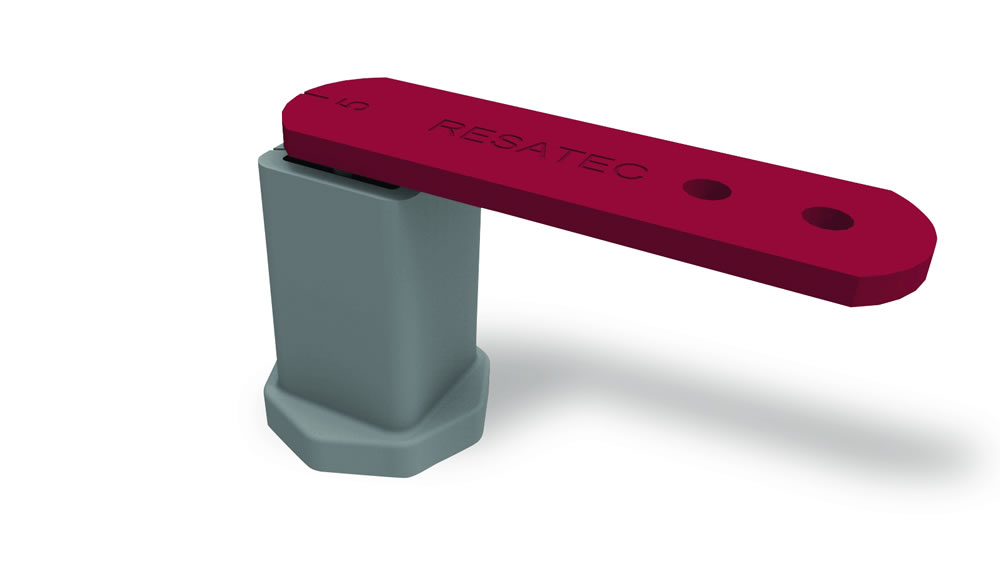

RESATEC® Universal Rubber Tensioners Type TE are
used throughout the mechanical engineering and
allied industries.
Mainly used as belt and chain tensioners, they are
simply fitted by a single rear mounted bolt and hold
in any position by friction. A base flange cutout allows
them to be accurately aligned using a simple spigot.
They can be supplied with a Lead and Cadmium free
powder-coated finish.
RESATEC®TE tensioners are safe in operation
and maintenance-free
| Type | A1 | A2 | B | C | ØD | E | F | G | H | I | K | M | F in N A1 | 0 – 32° A2 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TE2 | 80 | 60 | 52 | 20 | 8.5 | 38 | 8.0 | 16 | 90 | 5 | 7 | M6 | 0-90 | 0-110 | 0.240 |
| TE3 | 100 | 80 | 63 | 25 | 10.5 | 48 | 8.5 | 21 | 112.5 | 5 | 10 | M8 | 0-140 | 0-170 | 0.420 |
| TE4 | 100 | 80 | 78 | 30 | 10.5 | 59 | 8.5 | 25 | 115 | 6 | 12 | M10 | 0-320 | 0-430 | 0.600 |
| TE5 | 130 | 100 | 108 | 50 | 12.5 | 76 | 10.5 | 32 | 155 | 8 | 15 | M12 | 0-820 | 0-1050 | 1.700 |
| TE6 | 175 | 140 | 145 | 60 | 20.5 | 100 | 12.5 | 42 | 205 | 10 | 15 | M16 | 0-1500 | 0-1880 | 3.900 |
| TE7 | 220 | 175 | 198 | 70 | 20.5 | 112 | 12.5 | 51 | 255 | 12 | 18 | M20 | 0-2500 | 0-3200 | 6.500 |
| TE8 | 250 | 200 | 212 | 80 | 20.5 | 130 | 17.0 | 52 | 290 | 20 | 20 | M24 | 0-3900 | 0-4900 | 8.650 |
