NTN-SNR UCFEX14 Heavy Duty Bearing Housing With 70MM Bore
Variation Not Available
ABUCFEX14-NTN
Low Stock
£
222.41
Inc VAT
£
185.34
Ex VAT
NTN-SNR UCFEX14 Heavy Duty Bearing Housing With 70MM Bore | ABUCFEX14-NTN
Add to List
Remove from List
Add to Cart
SPECIFICATION
FURTHER INFO

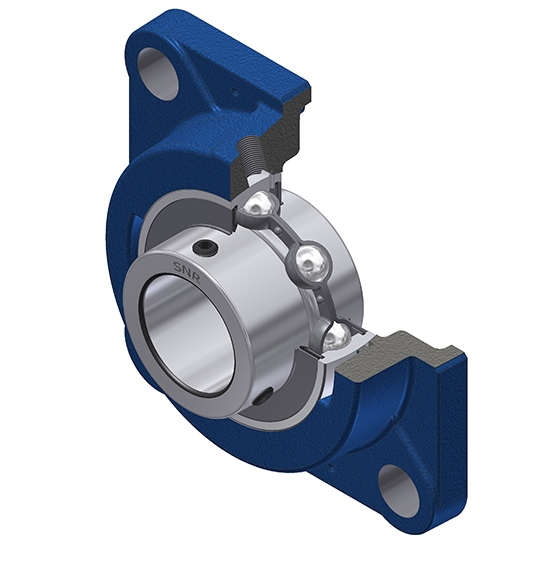

UCFEX Heavy Duty Bearing Housing Units with Steel Inserts
- Cast Iron Bearing Housing Unit
- Anti-corrosion finish
- Heavy Duty
- Included Steel Bearing Insert
| Part No. | Bore (mm) | Dimensions in mm | Loads (kN) | Bearing Housing | Included Bearing | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | J | A | A2 | N | B | Dynamic | Static | |||||
| UCFEX08 | 40 | 136.5 | 105 | 35.3 | 54.2 | 18 | 49.2 | 31.85 | 20.80 | FEX08 | UCX08G2 | 2.42 |
| UCFEX09 | 45 | 142.9 | 111 | 39.7 | 60.5 | 18 | 51.6 | 35.10 | 23.20 | FEX09 | UCX09G2 | 2.75 |
| UCFEX10 | 50 | 162 | 130 | 43.7 | 64.4 | 18 | 55.6 | 43.55 | 29.20 | FEX10 | UCX10G2 | 3.96 |
| UCFEX11 | 55 | 174.5 | 143 | 47.6 | 73.7 | 18 | 65.1 | 52.50 | 32.80 | FEX11 | UCX11G2 | 4.88 |
| UCFEX12 | 60 | 187.6 | 149.22 | 47.8 | 77.2 | 18 | 74.6 | 62.00 | 45.00 | FEX12 | UCX12G2 | 6.27 |
| UCFEX13 | 65 | 196.5 | 152.4 | 52 | 81 | 23 | 77.8 | 66.00 | 49.50 | FEX13 | UCX13G2 | 7.33 |
| UCFEX14 | 70 | 196.5 | 152.4 | 52 | 81 | 23 | 77.8 | 66.00 | 49.50 | FEX13-14 | UCX14G2 | 7 |
| UCFEX15 | 75 | 196.5 | 152.4 | 56 | 88.8 | 23 | 82.6 | 72.50 | 54.20 | FEX15 | UCX15G2 | 8 |
| UCFEX16 | 80 | 213.5 | 171.5 | 56 | 89.6 | 23 | 85.7 | 83.20 | 63.80 | FEX16 | UCX16G2 | 10.15 |
