Metric Spline Bush

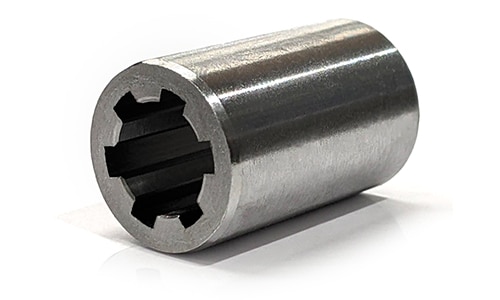

Metric Splined Stainless Steel Bush 16x13x3.5
Variation Not Available
SPHST16x13x3.5
Low Stock
£
50.10
Inc VAT
£
41.75
Ex VAT
Metric Splined Stainless Steel Bush 16x13x3.5 | SPHST16x13x3.5
Add to List
Remove from List
Add to Cart
SPECIFICATION
FURTHER INFO
Metric Splined Bushes in Stainless Steel
- Material = Stainless Steel Aisi 304 (En 1.4301)
- Special executions on request
| Type in Stainless Steel | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Stock No | D | d | c | Number of Splines | ∅A (H8) | L | Weight Kg | Tolerances | ||
| D (H11) | d (H7) | c (D9) | ||||||||
| SPHST14x11x3 | 14 | 11 | 3 | 6 | 18.75 | 25 | 0.028 | +0.11 +0.00 | +0.018 +0.000 | +0.045 +0.020 |
| SPHST16x13x3.5 | 16 | 13 | 3.5 | 6 | 21.75 | 30 | 0.047 | +0.11 +0.00 | +0.018 +0.000 | +0.060 +0.030 |
| SPHST20x16x4 | 20 | 16 | 4 | 6 | 28.50 | 30 | 0.090 | +0.13 +0.00 | +0.018 +0.000 | +0.060 +0.030 |
| SPHST25x21x5 | 25 | 21 | 5 | 6 | 36.00 | 40 | 0.190 | +0.13 +0.00 | +0.021 +0.000 | +0.060 +0.030 |
| SPHST32x26x6 | 32 | 26 | 6 | 6 | 42.50 | 40 | 0.242 | +0.16 +0.00 | +0.021 +0.000 | +0.060 +0.030 |
| SPHST38x32x6 | 38 | 32 | 6 | 8 | 49.70 | 40 | 0.304 | +0.19 +0.00 | +0.025 +0.000 | +0.060 +0.030 |
