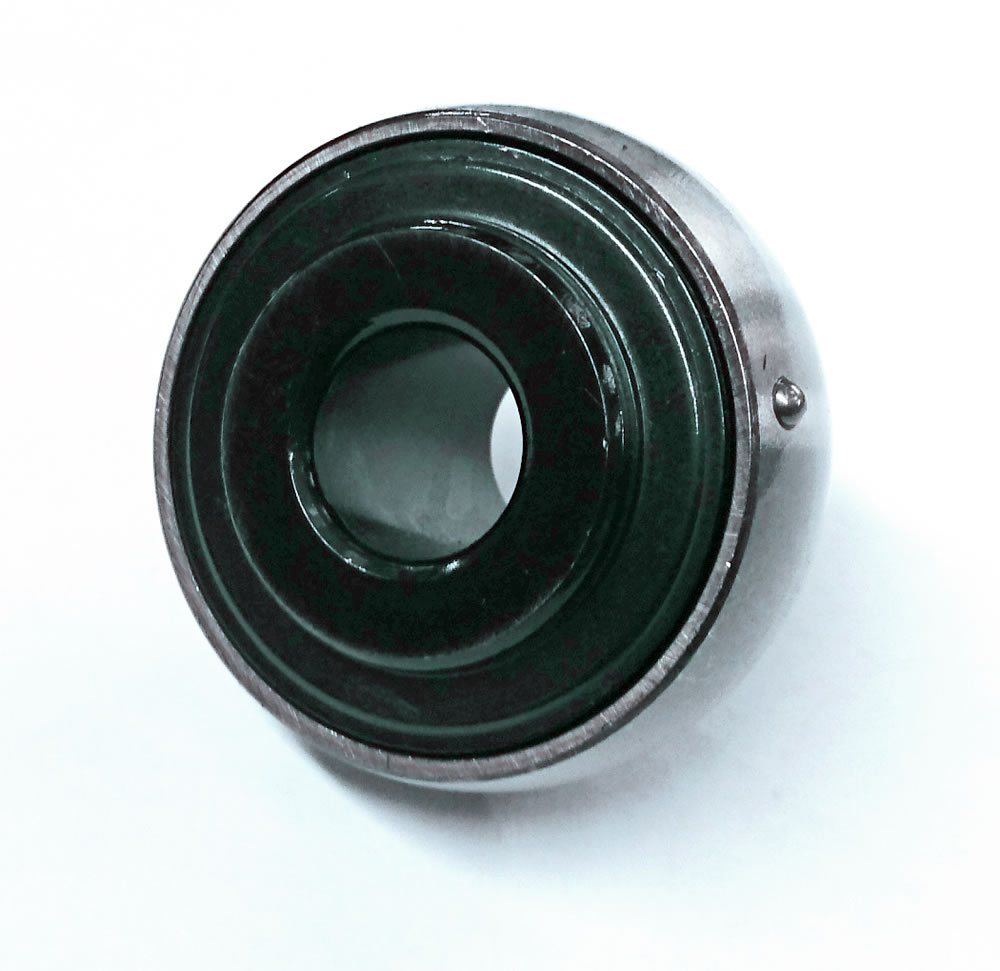

Driveflex UC 208 Bearing Insert With 40MM Bore
Variation Not Available
ABUC208-DF
In Stock
£
17.16
Inc VAT
£
14.30
Ex VAT
Driveflex UC 208 Bearing Insert With 40MM Bore | ABUC208-DF
Add to List
Remove from List
Add to Cart
SPECIFICATION
FURTHER INFO
Driveflex UC 200 Series Steel Bearing Housing Inserts
Steel Bearing Housing Inserts
| Code No. | Shaft hole Ø | Dimensions mm | Dynamic load | Static load | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | C | Fi | Fe | e | w | z | qs | (kN) | (kN) | Kg | |
| PB UC/202 | 15 | 47 | 31 | 17 | 12.5 | 18.3 | 4.8 | M6x1.0 | 10.00 | 6.30 | 0.9 |
| PB UC/203 | 17 | 47 | 31 | 17 | 12.5 | 18.3 | 4.8 | M6x1.0 | 10.00 | 6.30 | 0.18 |
| PB UC/204 | 20 | 47 | 31 | 17 | 12.5 | 18.3 | 4.8 | M6x1.0 | 10.00 | 6.30 | 0.16 |
| PB UC/205 | 25 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | M6x1.0 | 10.00 | 7.10 | 0.20 |
| PB UC/206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 6 | M6x1.0 | 15.20 | 10.20 | 0.32 |
| PB UC/207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | M8x1.0 | 20.10 | 13.90 | 0.48 |
| PB UC/208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8x1.0 | 25.60 | 18.10 | 0.64 |
| PB UC/209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8x1.0 | 25.60 | 18.10 | 0.68 |
| PB UC/210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | M10x1.0 | 27.50 | 20.20 | 0.82 |
| PB UC/211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10x1.0 | 34.00 | 22.50 | 1.11 |
| PB UC/212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10x1.0 | 41.00 | 31.50 | 1.54 |
| PB UC/213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | M10x1.0 | 44.80 | 34.70 | 1.86 |
| PB UC/214 | 70 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | M12x1.5 | 48.70 | 38.10 | 2.06 |
| PB UC/215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12x1.5 | 51.90 | 41.90 | 2.21 |
| PB UC/216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | M12x1.5 | 57.00 | 45.50 | 2.79 |
| PB UC/217 | 85 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | M12x1.5 | 66.00 | 53.20 | 3.45 |
| PB UC/218 | 90 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | M12x1.5 | 75.00 | 61.70 | 4.35 |
