Thrust Roller Bearing
51106 30mm Bore Thrust Ball Bearing
Variation Not Available
AB51106-NTN
Low Stock
£
16.31
Inc VAT
£
13.59
Ex VAT
51106 30mm Bore Thrust Ball Bearing | AB51106-NTN
Add to List
Remove from List
Add to Cart
SPECIFICATION
FURTHER INFO
Thrust Bearings
Thrust bearings are designed to maintain the shaft in one single direction. They allow low rotating speeds and sustain high axial loads. You are strongly advised against submitting them to radial loading.
Spherical Roller Thrust Bearing
Composed of 2 separable elements and able to absorb very high axial loads and high radial loads (approx. 50% of the axial load).
- Can absorb misalignment of approximately 3°
- Series: 29000 – Steel sheet cage: version E optimised, interchangeable
- Lubrication – Oil lubrication required by design

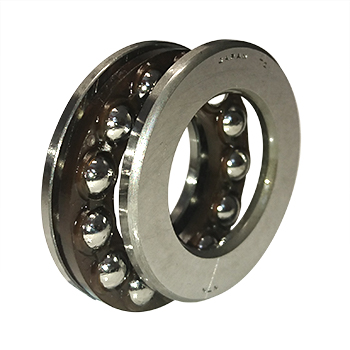

Thrust Ball Bearing For axial load only
Series: 51000 (No shields or seals)
| Part No. | Dimensions (mm) | Clearance | Part No. | Dimensions (mm) | Clearance | ||||
|---|---|---|---|---|---|---|---|---|---|
| Inside Ø | Outside Ø | Width | Inside Ø | Outside Ø | Width | ||||
| 51100 | 10 | 24 | 9 | Normal | 51206 | 30 | 52 | 16 | Normal |
| 51200 | 10 | 26 | 11 | Normal | 51107 | 35 | 52 | 12 | Normal |
| 51101 | 12 | 26 | 9 | Normal | 51207 | 35 | 62 | 18 | Normal |
| 51201 | 12 | 28 | 11 | Normal | 51108 | 40 | 60 | 13 | Normal |
| 51102 | 15 | 28 | 9 | Normal | 51208 | 40 | 68 | 19 | Normal |
| 51202 | 15 | 32 | 12 | Normal | 51109 | 45 | 65 | 14 | Normal |
| 51103 | 17 | 30 | 9 | Normal | 51209 | 45 | 73 | 20 | Normal |
| 51203 | 17 | 35 | 12 | Normal | 51110 | 50 | 70 | 14 | Normal |
| 51104 | 20 | 35 | 10 | Normal | 51210 | 50 | 78 | 22 | Normal |
| 51204 | 20 | 40 | 14 | Normal | 51111 | 55 | 78 | 16 | Normal |
| 51105 | 25 | 42 | 11 | Normal | 51211 | 55 | 90 | 25 | Normal |
| 51205 | 25 | 47 | 15 | Normal | 51112 | 60 | 85 | 17 | Normal |
| 51106 | 30 | 47 | 11 | Normal | 51212 | 60 | 95 | 26 | Normal |
