Angular Contact Bearing Open

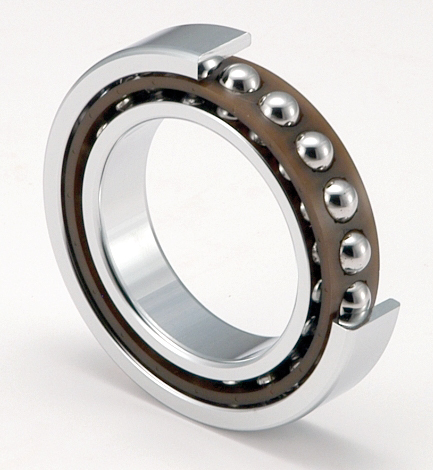

7206 Open Type Angular Contact Ball Bearing

Variation Not Available

AB7206-NTN

Low Stock

£ 25.18 Inc VAT £ 20.98 Ex VAT

Bearing Width - 16mm

Clearance - Normal

Inside Diameter - 30mm

Manufacturer - NTN-SNR

Outside Diameter - 62mm

Seals/Shields - Open

QTY

Add to Cart

SPECIFICATION

FURTHER INFO

Angular Contact Ball Bearings

Angular Contact Bearings

Standard Range

Depending on series and dimensions, angle of 30°

1 row: 7800, 7900, 71900, 7000, 7200, 7300, 7400 Large bearings: bore < 1060 mm
2 rows: 5200, 5300, 3200, 3300
For series 3200 and 3300, angle 25° or 32°, depending on type

4-Point Angular Contact Bearings

Standard Range: Solid cage (-M by SNR, -L1 by NTN): QJ200, QJ300

Sheet, solid or reinforced polyamide cage depending on the series and dimensions.

Possible Cages

Cage materials	Suffixes
Phenolic resin	T1 –
Sheet	-J
Reinforced polyamide fibre glass	-G15 (SNR) -T2 (NTN)
Brass	-M (SNR) -L1 (NTN)
Solid Steel	-F1 (NTN)

Variants	Brands	Suffixes
Angle at 25°	NTN	-AD
Angle increased to 40°	NTN and SNR	-B
Universal fitting with no pre-load	NTN and SNR	-G
Non-contact metal protection flange	NTN and SNR	-ZZ
Contact seal	SNR	-EE
Non-contact seal (labyrinth effect)	NTN	-LLB

1 Row

Part No.	Dimensions (mm)			Seals/Shields	Clearance
Part No.	Inside Ø	Outside Ø	Width	Seals/Shields	Clearance
7200	10	30	9	Open	Normal
7001	12	28	8	Open	Normal
7201	12	32	10	Open	Normal
7301	12	37	12	Open	Normal
7002	15	32	9	Open	Normal
7202	15	35	11	Open	Normal
7302	15	42	13	Open	Normal
7003	17	35	10	Open	Normal
7203	17	40	12	Open	Normal
7303	17	47	14	Open	Normal
7004	20	42	12	Open	Normal
7204	20	47	14	Open	Normal
7304	20	52	15	Open	Normal
7005	25	47	12	Open	Normal
7205	25	52	15	Open	Normal
7305	25	62	17	Open	Normal
7006	30	55	13	Open	Normal
7206	30	62	16	Open	Normal
7306	30	72	19	Open	Normal
7007	35	62	14	Open	Normal
7207	35	72	17	Open	Normal
7307	35	80	21	Open	Normal
7008	40	68	15	Open	Normal
7208	40	80	18	Open	Normal
7308	40	90	23	Open	Normal
7009	45	75	16	Open	Normal
7209	45	85	19	Open	Normal
7309	45	100	25	Open	Normal
7010	50	80	16	Open	Normal
7210	50	90	20	Open	Normal
7310	50	110	27	Open	Normal
7011	55	90	18	Open	Normal
7211	55	100	21	Open	Normal
7311	55	120	29	Open	Normal
7012	60	95	18	Open	Normal
7212	60	110	22	Open	Normal
7312	60	130	31	Open	Normal
